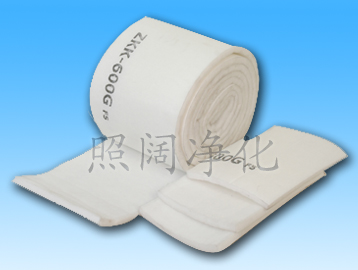

| Product name： | patio filter screen |
| Description： |
Feature:
1. Adopts compound hot-melt fiber with the features of flame resistance, closed formation. The connection of fiber is firm, its filter space is large, and dust holding capacity is strong.
2. The air outlet of filter screen adopts grid mesh to enhance the shaping, have the function of enhancing the solid of filter material, and have layer flow effect of leading air equally distributed.
3. Special grume be coated on the filter screen evenly, increase the dust holding capacity of filter bag. Comparing with filter material which common adopting the resin spray, have the features of low pressure lose, long service life of filter bag.
Application:
Exclusively used in air filter of automobile repair plant, motorbike plant, bicycle plant, power plant, coating plant etc.
Common Specification And Function Detail:
Model
ZZK-600G
Material Size
22mmT×1.6m×20m 22mmT×2m×20m
Material
polyester
Gram Weight
600g/m2
Dust Capacity
400g/m2
Air Speed
0.26m/s
Temperature Resistant
120oC
Fire Security Grade
Class F1 DIN53438 (Germany industrial standard) self-quenching type
Dust Collection Rate
97~99%
Original Pressure Loss
26Pa
Final Pressure Loss
400Pa
 |
||||||||||
|
||||||||||
 |
||||||||||
